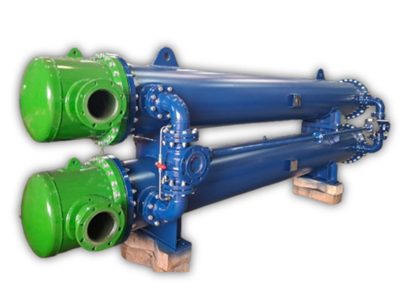

Shell and Tube Duplex Oil Coolers
We are Manufacturer, Supplier, Exporter of Shell and Tube Duplex Oil Coolers, Tube Heat Exchangers in Karnataka, India, Africa & Gulf Countries.

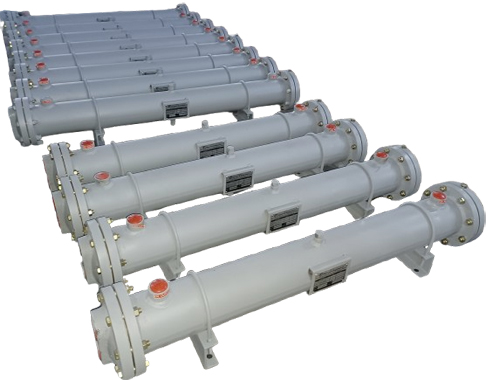

- Simplex Oil Cooler : Single Oil Cooler
- Duplex Oil Cooler : 2 Coolers with Changeover Valve arrangement
- In Duplex Cooler set, one cooler is kept in standby position and other is operating. During maintenance the standby cooler is used to provide uninterrupted service.
- We manufacture this cooler in Vertical Mounting and Horizontal Mounting.
| Material of Construction of Simplex & Duplex Oil Coolers |
| Shell |
IS 3589 or SA 106 Gr.B or SS 304 |
| Tubes |
SS 304, SS 316, Ad Brass, Copper & Cupro-Nickel |
| Tube-sheets |
Stainless Steel or Carbon Steel or Naval Brass |
| End Covers |
Stainless Steel or Carbon Steel |
- We manufacture Shell and Tube Heat Exchangers in Simplex and Duplex Arrangements.
- Both Horizontal Mounted & Vertical Mounted Heat Exchangers are manufactured in our Factory.

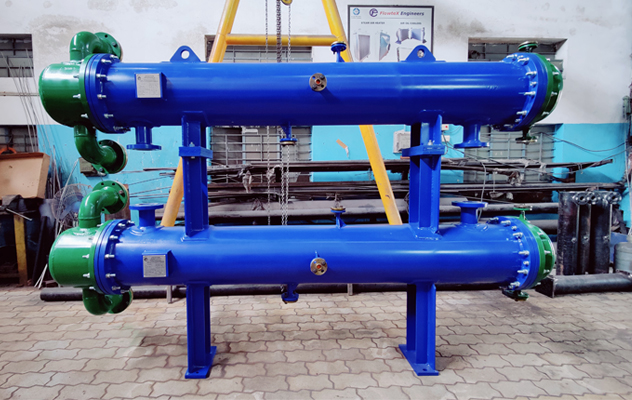

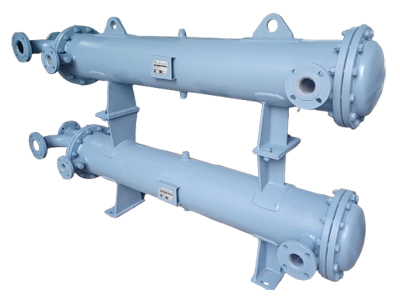

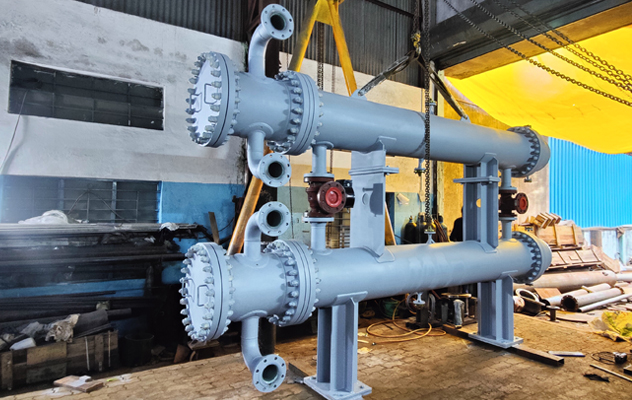

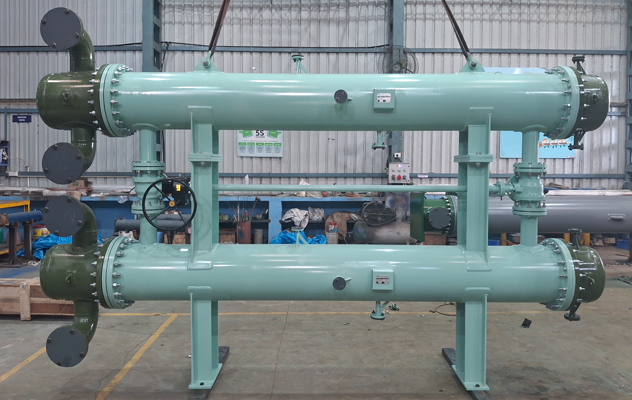

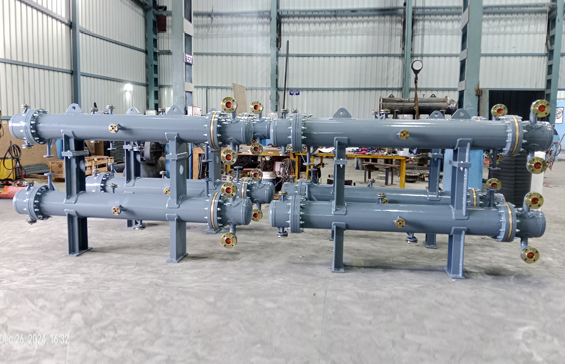

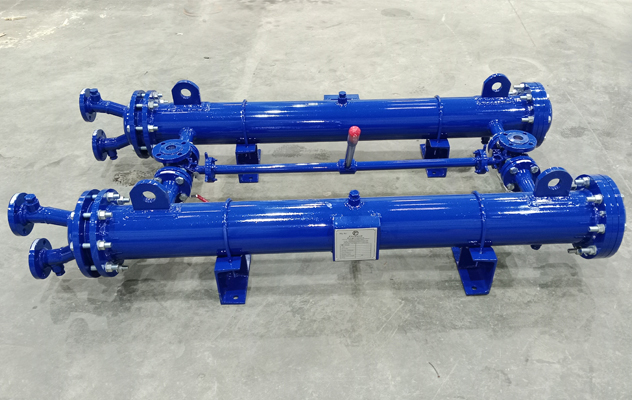

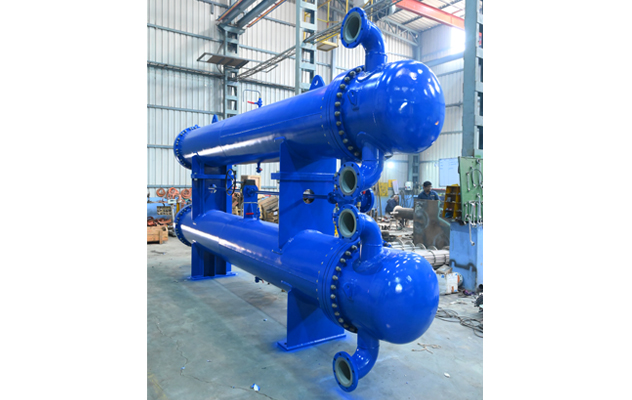

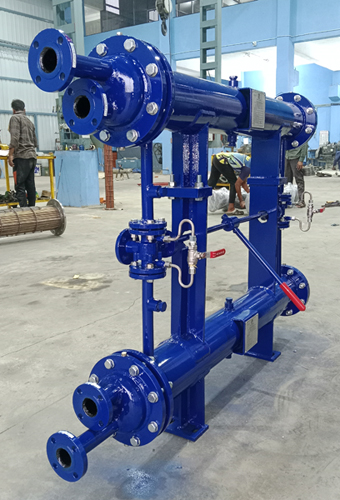

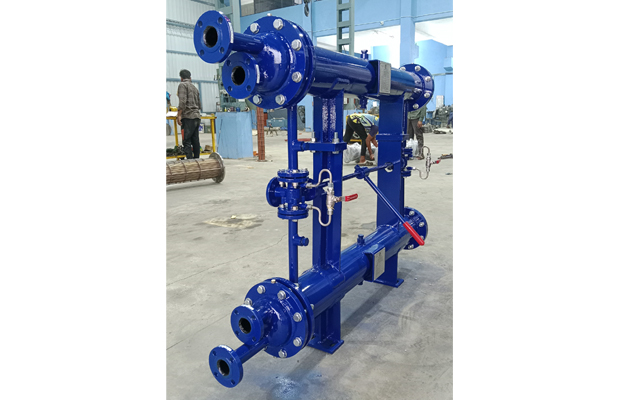

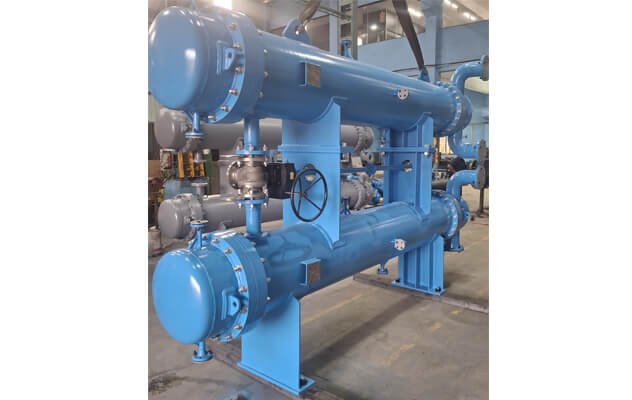

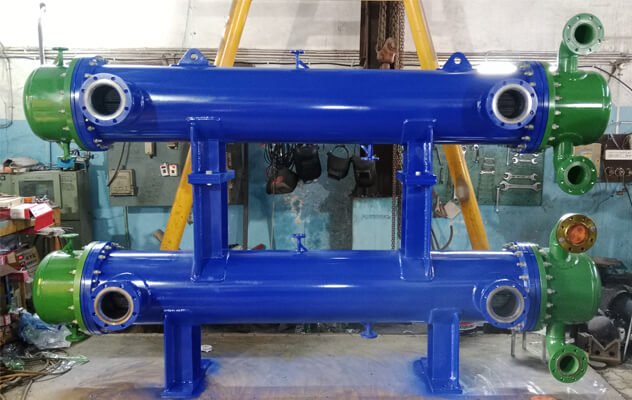

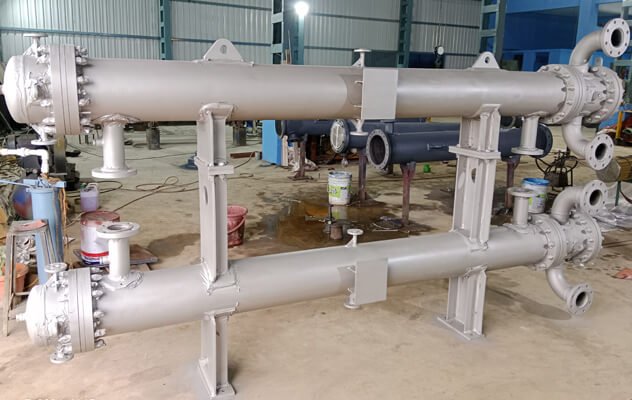

- Duplex Oil Coolers consists of 2 Coolers + 3 Way Ball Valves in Stacked Condition, or mounted side-by-side (Vertical Mounting).
- When 1 Cooler is working, another is in standby. During maintenance the 3-Way Change Over valve is operated to start Standby Cooler and maintenance activity is carried out without shutting down the system.
- Duplex Oil Coolers allows continuous operation of the Lubrication System without stopping the System / Line
We have Handled Oil Flow Rates from 10 LPM to 2500 LPM, Lube Oil Coolers are manufactured for Oil Grades from VG 32 to VG 460, The Size of Biggest Oil Cooler manufactured in our Factory is of Ø800 Shell Dia x 4.5 mtr Long

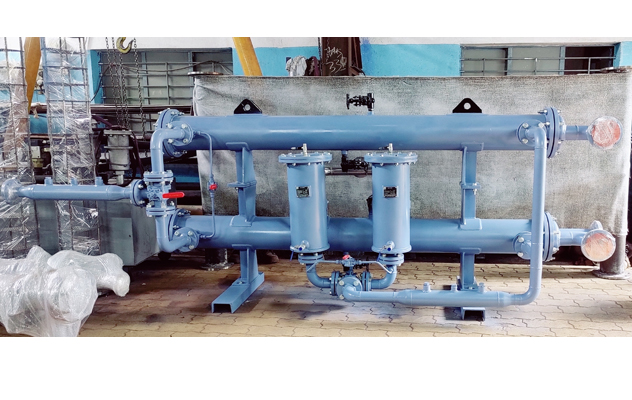

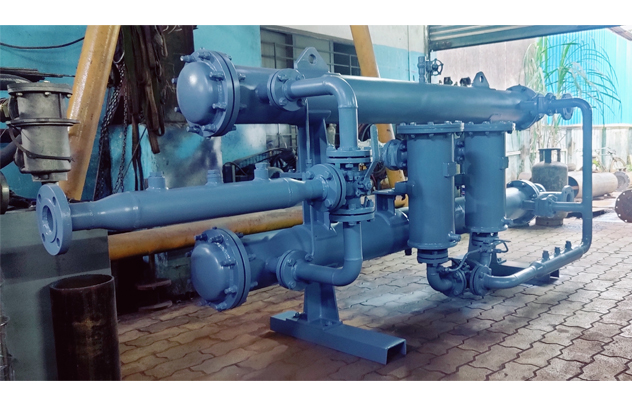

Duplex Oil Cooler Set
Max. Oil Flow Rate : 1800 LPM Heat Exchanged Capacity : 8,64,000 kcal/hr
Material of Construction for Lube Oil Coolers is as follows |
Part |
Material of Construction |
Shell |
Carbon Steel, SA106 Gr.B, IS 3589 ERW, SS 304 or SS 316 |
Tubes |
SS 304, SS 316, Admiralty Brass, Copper, CuNi 90/10, CuNi 70/30 |
Tubesheet |
IS 2062 Gr.B, SA 516 Gr.70, Naval Brass, AB-2, SS 304, SS 316 |
Baffles |
Brass, Cabon Steel, SS 304 or SS 316 |
End Covers |
SA 516 Gr.70, IS 2062 or SS 304 |
Saddle Support |
SA 516 Gr.70, IS 2062 |
These Coolers are used in below Industries
- Power-Plants For Turbine Oil Cooling
- Sugar Factories For Steam Turbines
- Cement Industries For Gear Box Lubrication
- Paper Industries For Bearing Lubrication.
Applications
- • Power Plants: Cooling turbine oil to maintain optimal operating temperatures.
- • Sugar Factories: Cooling steam turbine oil to ensure efficient performance.
- • Cement Industries: Lubrication of gearboxes to prevent overheating.
- • Paper Industries: Lubrication of bearings to reduce wear and tear.
Design Features
- • Duplex Configuration: Consists of two coolers with a 3-way ball valve in a stacked or side-by-side arrangement.
- • Continuous Operation: Allows one cooler to operate while the other is in standby for maintenance, ensuring uninterrupted lubrication system performance.
- • Mounting Options: Available in both horizontal and vertical configurations.
